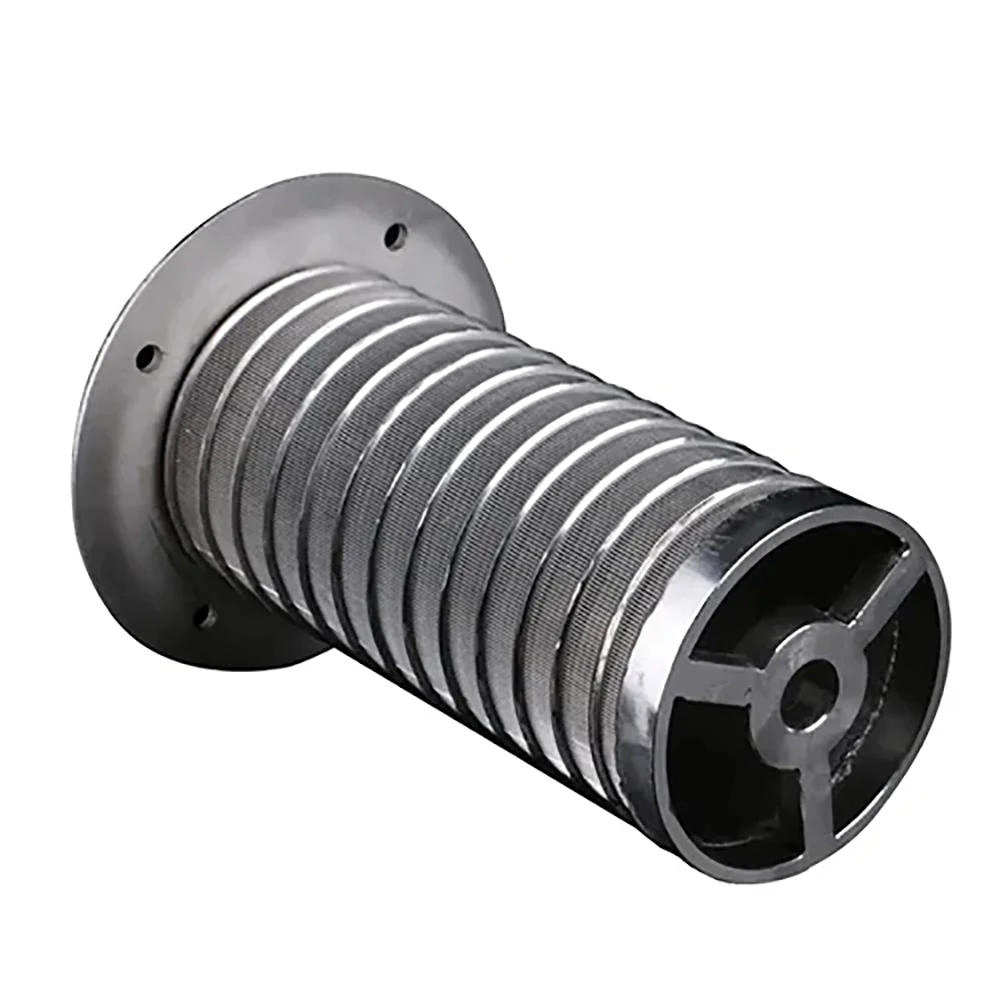

High-Precision Stainless Steel Wedge Wire Screen Cylinder

Advanced Johnson Screen Solutions for Critical Industrial Separation
The Wedge Wire Screen Cylinder (also known as a Johnson Screen) from Jingzhou Metal is a premium filtration component engineered for superior solid-liquid and gas-solid separation. Utilizing advanced fusion-welding technology, our cylinders feature a continuous "V" shaped profile wire wound around internal support rods, ensuring a non-clogging surface and exceptional mechanical integrity under high-pressure conditions.
· Precision Filtration: Slot openings customizable from 0.02 mm to 20 mm.
· Extreme Durability: High-grade SS304/316L for maximum corrosion and wear resistance.
· Anti-Clogging Design: Self-cleaning V-wire geometry facilitates efficient backwashing.
· Structural Strength: Capable of withstanding differential pressure up to 6 Kg/cm².
· Custom Dimensions: Outer Diameter (OD) ranging from 25.4 mm to 1200 mm.

WhatsApp Us

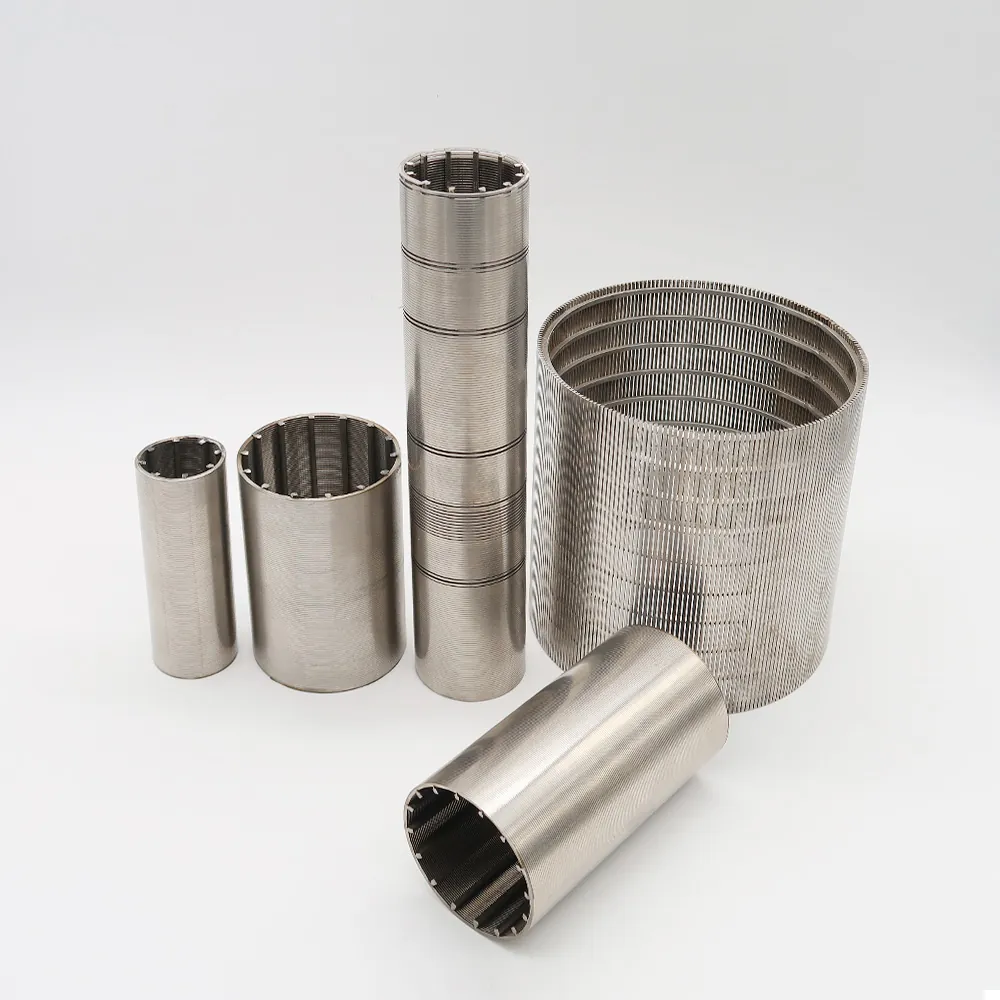

High-Precision-Stainless-Steel-Wedge-Wire-Screen-Cylinder-1
High-Precision-Stainless-Steel-Wedge-Wire-Screen-Cylinder-1

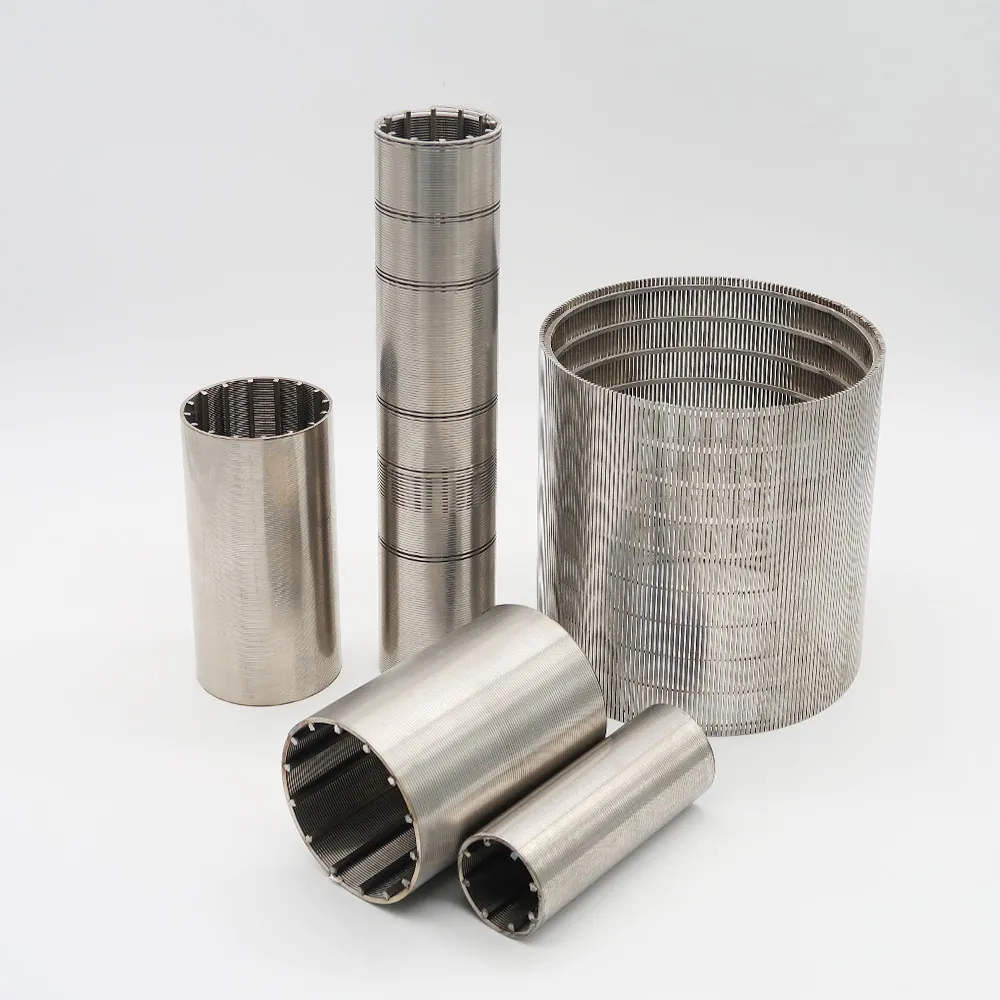

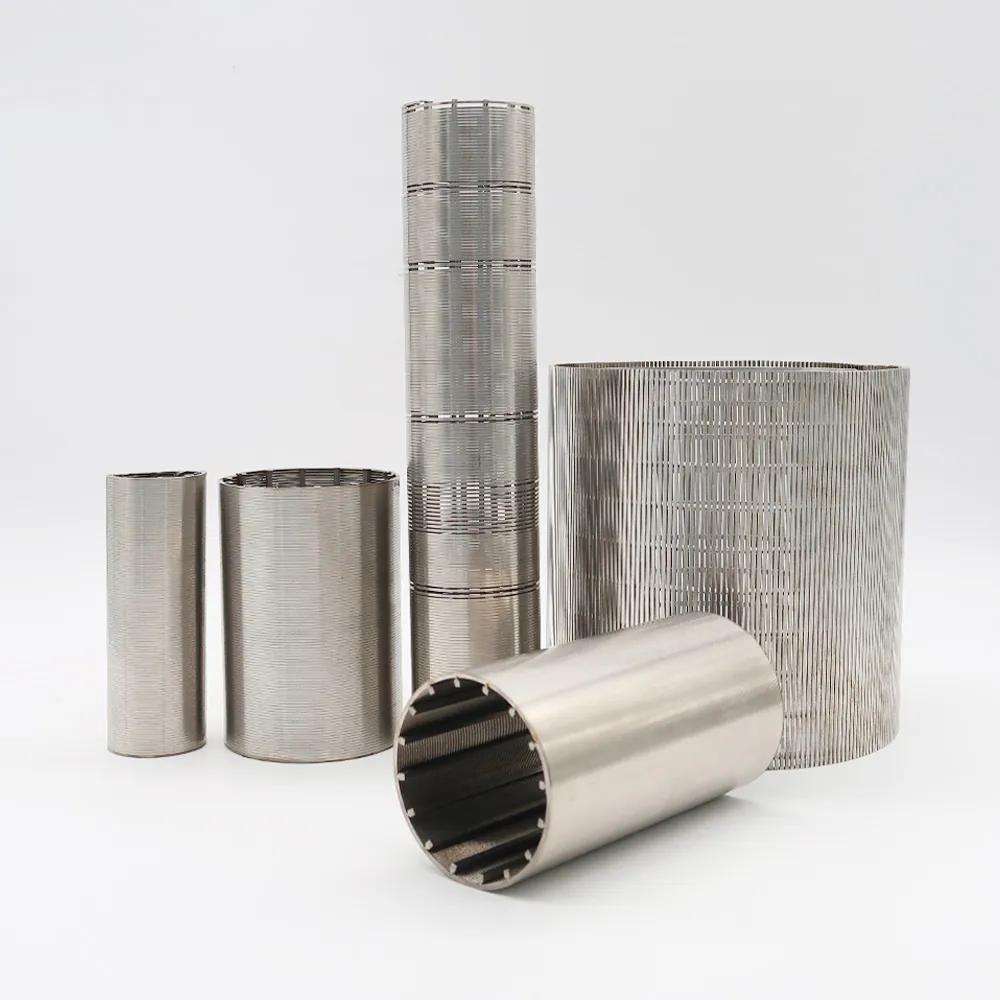

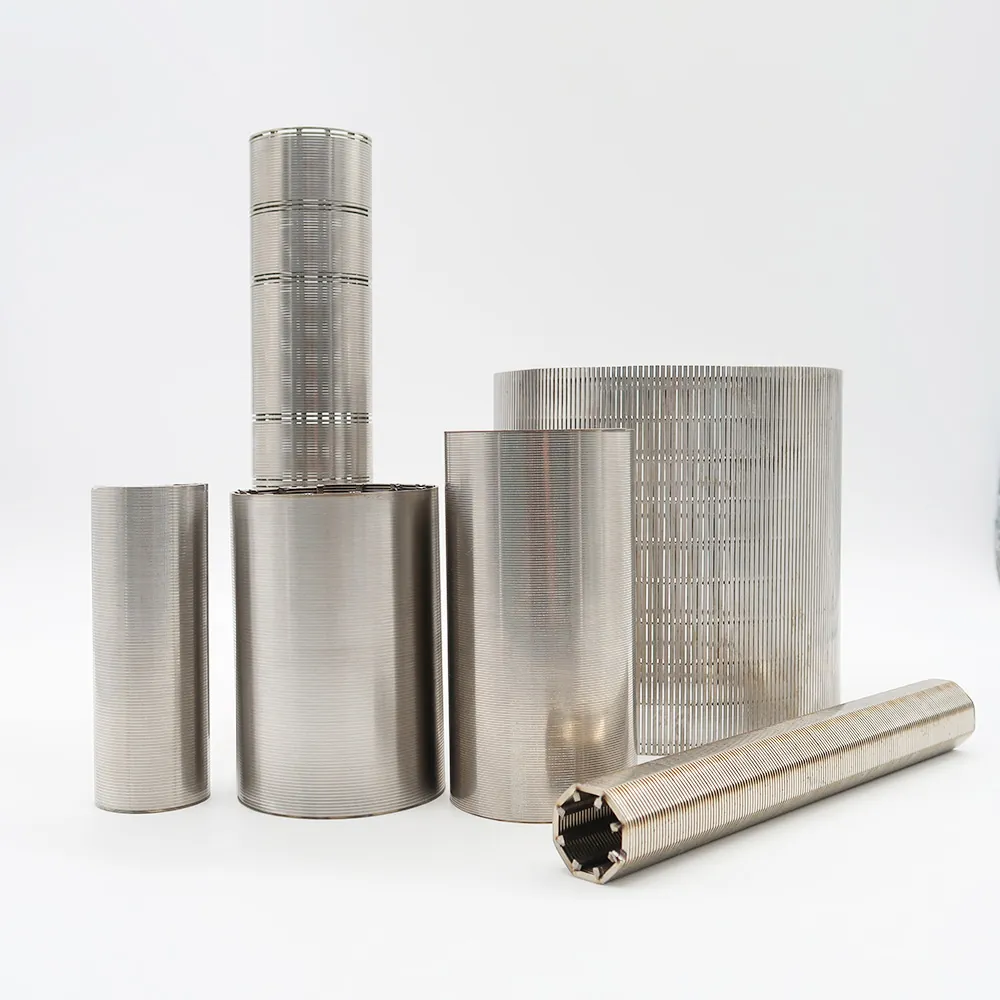

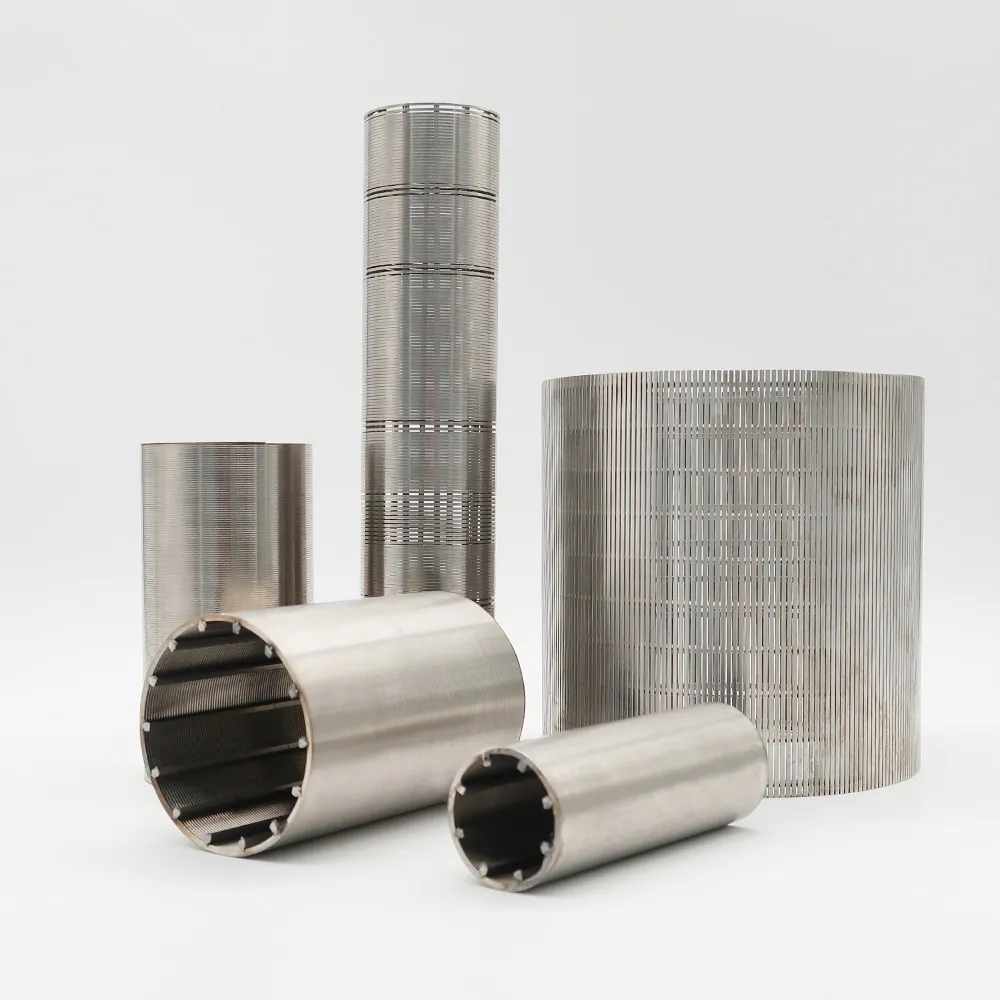

high precision stainless steel wedge wire screen cylinder
high precision stainless steel wedge wire screen cylinder
high precision stainless steel wedge wire screen cylinder
high precision stainless steel wedge wire screen cylinder

Product Overview

Our Stainless Steel Wedge Wire Screen Cylinder is designed to provide reliable filtration in the most demanding environments. By precisely controlling the gap width, we offer solutions ranging from microfiltration to coarse screening. Each cylinder is manufactured using unique computer-controlled machinery, where a continuous length of triangular-section stainless steel profile wire is fusion-welded to internal support ribs.

This construction creates a rigid, one-piece structure with a smooth, continuous slot opening. Its superior anti-clogging performance makes it an essential filter element for self-cleaning filters and microfiltration equipment, particularly where corrosive media (acids, alkalis) or high temperatures are present.

Product Specifications

Technical Item Screen Cylinder Specifications
Material Grades SS 304, 302, 304L, 316, 316L, or customized
Filtration Rate 15 – 800 μm
Outer Diameter (OD) 25.4 mm – 1200 mm
Minimum Sieve Gap 0.02 mm (Maximum 20 mm)
Slot Sizes 0.1 mm – 45 mm (Standard Range)
Profile Wire Sizes 2.0x3.0mm, 3.0x4.6mm, 3.0x5.0mm, etc.
Support Rod Options 3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50
Support Distance 8 mm – 80 mm (Customizable)
Pressure Withstand Differential Pressure up to 6 Kg/cm²
Performance Corrosion-resisting, Wear-resisting, Tear-resisting
stainless steel metal mesh conveyor belt

Key Advantages

Controllable Filtration Precision: Gap widths can be tailored to meet specific filtration requirements, ensuring accurate particle classification.
Non-Clogging Geometry: The “V” shaped profile prevents impurities from getting stuck, as the opening widens inwardly to allow particles to pass or be flushed away.
High Structural Stiffness: Fusion-welding of wire to support bars creates a robust filter tube that resists deformation under high working pressures.
Thermal & Chemical Stability: Ideal for harsh environments involving high temperatures, organic solvents, and corrosive agents.
Optimal Open Area: The back width of the sieve strip determines a high aperture ratio, ensuring maximum flow with minimum pressure drop.

Industrial Applications

Heavy Industrial Application

Water Treatment: Well screens and wastewater filtration.
Mining & Minerals: Mineral processing screens and dewatering.
Oil & Gas: Sand control and downhole completion.
Food & Beverage: High-precision grading and filtration equipment.
Powder Screen Filter: High-precision grading and classification of fine powders and granules for pharmaceutical and chemical sifters.
Paper & Pulp Filtration: Efficient fiber recovery, dewatering, and pulp cleaning to ensure consistent production quality.
high precision stainless steel wedge wire

Light Industrial Application

Y Clothing Zipper Wire: Acts as the core material for high-end metal zipper teeth, ensuring smooth operation and high tensile strength with ±0.01mm precision.
Eyewear Parts: Specifically used for eyewear rim wires, the grooved profile securely locks lenses in place while providing lightweight structural stability.
Industrial & Decorative Mesh: Enhances structural locking and filtration efficiency in stainless steel wires or premium architectural decorative mesh systems.
Watch Parts: Provides micron-level precision for watchband connectors and internal support rings, ensuring a perfect fit and long-term corrosion resistance.
Headphone Parts: Used in telescopic sliders or internal frames for high-end headphones, offering smooth adjustment through precise geometry and low-friction finishes.
Jewelry & Accessories: Utilizing SS316L’s skin-friendly properties and high polishability for modern minimalist bracelets, necklaces, and functional clasps.
high precision stainless steel wedge wire

Other Application

Medical Devices: Used in surgical instrument handles and diagnostic equipment components requiring high-precision grooved fits and biocompatibility.
Electronics Parts: Acts as miniaturized structural frames or heat-dissipation tracks within precision electronic housings.
Aerospace: High-strength profiled wire for specialized fastening and reinforcement in extreme temperature and pressure environments.
Welding: Specialized grooved filler wire designed for high-precision TIG/MIG welding and automated joining processes.
Orthodontics: Medical-grade stainless steel archwires and bracket components, ensuring precise tension and patient comfort.
Spring Steel Wire: High-tensile grooved profiles used to manufacture constant-force springs and precision torsion components.
high precision stainless steel wedge wire

Factory Strength

16+ Years of Expertise: Dedicated to producing stainless steel wire since 2009.
Large-Scale Production: 18,000㎡ facility with three state-of-the-art plants in Tianjin, China.
High-Tech Enterprise: Recognized as a National High-Tech Enterprise with ISO 9001 certification.
Global Reach: Products exported to Europe, America, Southeast Asia, and the Middle East.
Fast Fulfillment: Orders fulfilled swiftly with standard lead times of 7-15 days.
high precision stainless steel wedge wire
high precision stainless steel wedge wire

Quality Control

· Automated Fusion Welding: We utilize unique computer-controlled machinery to continuously wind and weld profile wires onto support bars, guaranteeing consistent gaps and weld strength.
· Dimensional Inspection: Every batch is measured to ensure the ±0.01mm tolerance of wire dimensions and slot openings.
· Material Verification: Spectroscopic analysis ensures material grade compliance (e.g., SS316L for high-salinity oil environments).
· Integrity Testing: Assessment of mechanical strength and stiffness to ensure the cylinders withstand target differential pressures (up to 6Kg/cm²).
high precision stainless steel wedge wire
high precision stainless steel wedge wire

Packaging & Delivery

Packaging: Wooden spools, iron spools, or customized packing for safe international transit.
Shipping: Sea freight, air freight, and express delivery available.
high precision stainless steel wedge wire

FAQ

Q: Can you manufacture screen cylinders with extremely fine gaps for microfiltration?
A: Yes, our advanced machinery allows for a minimum sieve gap of 0.02 mm, providing ultra-precision filtration for chemical and pharmaceutical applications.
A: The V-shaped wire only contacts particles at two points. Any particle passing through the surface gap will not get lodged because the slot widens inwardly, significantly reducing maintenance and downtime.
A: Absolutely. We can customize the diameter and number of support rods (e.g., 3.8mm/22 to 3.8mm/50) to meet the mechanical strength requirements of your specific application.
A: Yes, the smooth surface and non-clogging structure of our Johnson screens are specifically designed to facilitate efficient backwashing, making them ideal for self-cleaning filter systems.
