Inconel Nickel Alloy Profile Wire / Shaped Wire

Product Overview

Inconel nickel alloy profile wire (also known as shaped wire) is a high-performance, precision-formed raw material designed specifically for secondary manufacturing and downstream processing. Unlike finished wedge wire elements or screen panels, this product is supplied in coils or on spools. It is engineered for manufacturers who need to wind, weld, weave, or form structural components and filtration media that must operate in extreme high-temperature and highly corrosive industrial environments.

Cross-Sectional Profiles

We offer a range of cross-sectional shapes to integrate into your automated welding or forming equipment.

• V-Shape / Wedge Shape: The foundational wire for manufacturing continuous slot screens and filtration media.
• Triangle: Used for specialized separation, grids, and structural supports.
• Trapezoid: Designed for high-strength industrial grid manufacturing.
• Half-Round & Flat: Ideal for architectural, support, and banding applications.
• Custom Profiles: Bespoke shape drawing is available based on customer CAD drawings, subject to mold feasibility and grade formability.

Product Specifications

Our production capabilities cover a wide range of sizes. Please note that exact dimensional limits and tolerances depend heavily on the selected Inconel grade and cross-sectional geometry:

Specification Parameter	Typical Range & Details
Profile Geometry	V-shape, Triangle, Trapezoid, Half-round, Flat, Custom
Width	Typically 0.5 mm – 10.0 mm
Height / Thickness	Typically 1.0 mm – 15.0 mm
Tolerance Control	Down to ±0.01 mm – ±0.03 mm (Achievability depends on profile and grade; subject to factory confirmation per order)
Temper	Annealed, Half-Hard, Full-Hard (Customized for your forming needs)
Surface Finish	Bright, Smooth, Free of burrs
Coil Weight	15 kg – 500 kg per coil (Customizable based on payload)
Spool or Core Type	DIN spools, Z2/Z3 spools, Wooden cores, or Coreless coils

Available Inconel Grades

We process profile wire in several commonly requested Inconel grades. (Note: The availability of specific sizes and profiles may vary by alloy grade due to differences in work-hardening rates and formability.)

• Inconel 600: Frequently used for downstream winding of internal components in chemical processing.
• Inconel 601: Suited for forming high-temperature furnace belts and heat-treating fixtures.
• Inconel 625: A common choice for marine and harsh chemical support structures due to excellent resistance to pitting and crevice corrosion.
• Inconel 690: Specialized for nuclear industry applications, such as steam generator internal wire components.
• Inconel 718: Selected for ultra-high strength structural wire and aerospace components.
• Inconel X-750: Used for winding high-temperature springs and specialized fasteners.
  (Other grades, such as Inconel 617 or Hastelloy C-276, can be evaluated and supplied upon specific request.)

Key Material Advantages

Performance characteristics are highly dependent on the specific grade, heat treatment condition, and operating environment:

• High-Temperature Stability: Grades like Inconel 601 offer exceptional resistance to oxidation and exhibit high mechanical stability at elevated temperatures (e.g., up to 1200℃ in specific oxidizing atmospheres).
• Severe Corrosion Resistance: Inconel alloys generally provide superior resistance to a wide range of corrosive media, including acids, alkalis, and chlorides, significantly extending service life compared to standard austenitic stainless steels in harsh environments.
• High-Strength Properties: When properly age-hardened, grades like Inconel 718 can achieve exceptional tensile strength (up to or exceeding 1240 MPa), making them ideal for high-stress applications.
• Wide Temperature Toughness: Select grades maintain excellent toughness from cryogenic temperatures up to elevated thermal states, ensuring structural integrity under demanding conditions.

Downstream Industrial Applications

What can your facility manufacture with our Inconel Profile Wire?

• Filtration Equipment Manufacturing: Winding and welding into raw wedge wire cylinders and screen media.
• Chemical & Petrochemical Components: Forming support grids and structural internals for reactors.

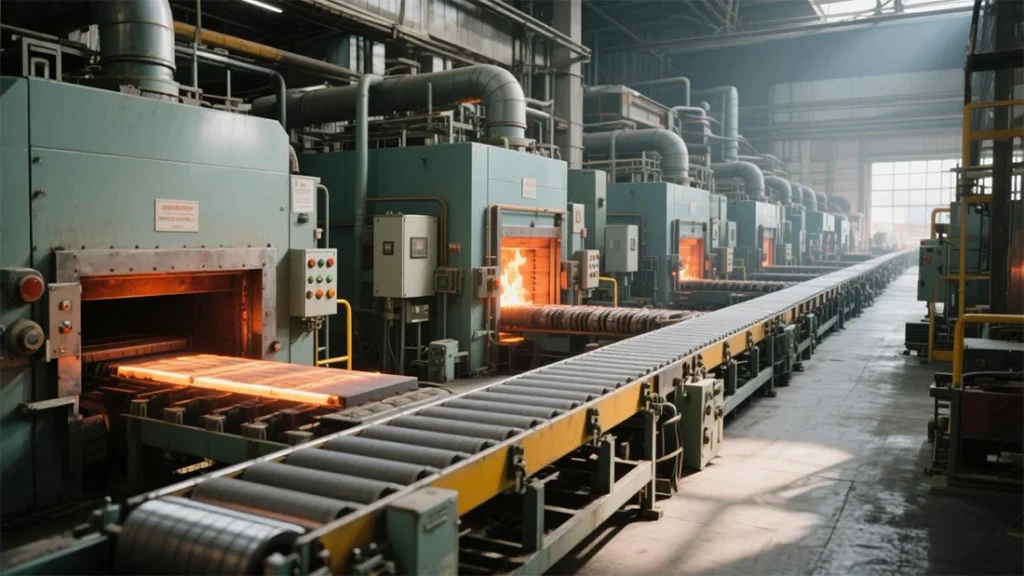

• Thermal Processing Components: Weaving and shaping into high-temperature industrial furnace belts, mesh, and heat treatment fixtures.
• Energy & Aerospace Parts: Manufacturing specialized springs, fasteners, and high-stress wire-formed parts.

Quality Control & Standards

We are committed to delivering raw materials that meet strict industrial standards:

• Manufacturing Standards: Wire products are manufactured in compliance with applicable sections of ASTM B166 (Standard Specification for Nickel-Chromium-Iron Alloys and Other Nickel Alloys, Bar and Wire) or customized per buyer requirements.
• Quality System: Our facility operates under an ISO 9001 certified quality management system.
• Material Traceability: A comprehensive Material Test Report (MTR) according to EN 10204 3.1, detailing chemical composition and mechanical properties, is provided with every order.
• Third-Party Inspection: To ensure complete transparency, third-party testing and inspections (such as SGS, BV, or TUV) can be arranged as an optional service upon customer request prior to shipment.
