House-shaped Stainless Steel Profile Wire (Ridge-section Wire)

Tianjin Jingzhou Metal Products manufactures unique House-shaped Stainless Steel Profile Wire, characterized by its pentagonal "roof-ridge" cross-section. This specialized profile is engineered for advanced wedge wire screens that require specific filtration angles and for high-end architectural applications.
· Unique Geometry: House-shaped (ridge) profile for optimized fluid dynamics and debris shedding.
· Precision Tolerance: Ultra-precise dimensions maintained at +/- 0.01mm.
· Superior Finish: Bright, polished surface for minimal friction and enhanced aesthetics.
· Material Integrity: Available in premium SS304, 316, and 316L grades.

WhatsApp Us
Close up of bright house shaped stainless steel profile wire wound neatly on a spool
Close up of bright house shaped stainless steel profile wire wound neatly on a spool

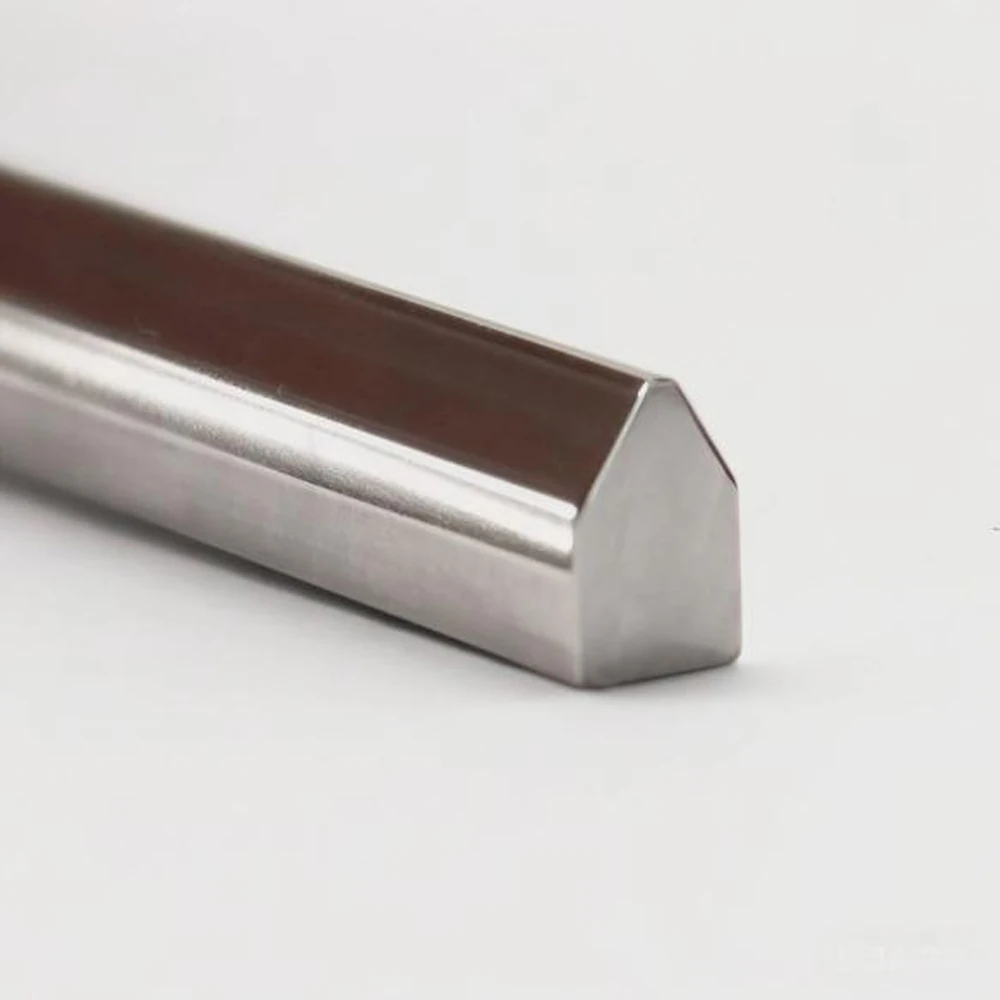

Close up of pentagonal stainless steel wire showing five sided house shaped cross section

Product Overview

House-shaped profile wire, also referred to as roof-section or ridge-shaped wire, features a distinctive five-sided cross-section. The “peak” of the house shape provides a sharp, consistent edge for filtration, while the sloping “roof” sides facilitate the rapid movement of particles or fluids, reducing the risk of surface accumulation. Developed through Jingzhou’s proprietary precision rolling technology, this wire ensures that each ridge is uniform, making it an ideal component for specialized wedge wire screens used in fine-particle separation and architectural decorative grilles.

Product Specifications

Technical Parameter Specification Details
Material Grade Stainless Steel 304, 316, 316L (Custom Alloys Available)
Cross-Section Shape House-shaped / Pentagonal Ridge Section
Common Dimensions 3x4.3mm,2.3x2mm,1x3mm
Dimensions Tolerance +/- 0.01mm
Production Capacity 1,200 tons / month
Surface Treatment Bright / Matte
Package Wooden reel / Steel reel / Coils
Tensile Strength 900-1100mpa
Cross-section catalog of custom shaped preformed wire and wedge wire profiles

Key Advantages

Optimized Separation Angle: The roof-like ridge provides a specific contact point that enhances the screening efficiency for fine or sticky materials.
Enhanced Structural Rigidity: The five-sided geometry offers greater resistance to lateral bending compared to standard thin V-wires.
Excellent Debris Shedding: The sloping sides of the “house” shape allow for faster runoff of liquids and prevent the build-up of solids on the screen surface.
Aesthetic Appeal: Beyond industrial use, the consistent ridge profile makes it a popular choice for high-end architectural grilles and decorative facades.

Industrial Applications

Beer and Beverage: High-precision V-wire and T-wire components provide the ideal self-cleaning surface for lauter tun false bottoms and diatomaceous earth filters in brewing.
Mining Screen: Heavy-duty house-shaped and triangle wires offer superior wear resistance and high-impact structural stability for coal washing and ore dewatering.
Oil and Gas: Precision-engineered wedge wire profiles ensure efficient sand control and catalyst recovery in high-pressure downhole and refinery environments.
Paper and Pulp Filter: Non-clogging wedge wire cylinders and support rods facilitate high-efficiency fiber recovery and white water recycling in paper manufacturing.
Powder Screen Filter: Ultra-fine slot openings (down to 0.02mm) allow for the precise dry or wet classification of fine powders and chemical granules.
Water Treatment: Robust support rods and profile wires act as the backbone for intake screens and resin traps, ensuring long-term reliability in municipal filtration.
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)

Beer and Beverage

Mining Screen

Oil and Gas

t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)

Paper and Pulp Filter

Powder Screen Filter

Water Treatment

Factory Strength

16+ Years of Expertise: Dedicated to producing stainless steel wire since 2009.
Large-Scale Production: 18,000㎡ facility with three state-of-the-art plants in Tianjin, China.
High-Tech Enterprise: Recognized as a National High-Tech Enterprise with ISO 9001 certification.
Global Reach: Products exported to Europe, America, Southeast Asia, and the Middle East.
Fast Fulfillment: Orders fulfilled swiftly with standard lead times of 7-15 days.
high precision stainless steel wedge wire
high precision stainless steel wedge wire

Quality Control

· ISO 9001 Certified: Every production run is governed by our strict quality management system.
· Precision Metrology: Each batch of house-shaped wire is inspected using optical measurement systems to verify the ridge angle and the +/- 0.01mm tolerance.
· Material Verification: We guarantee the chemical composition of our SS304/316 grades to ensure long-term corrosion resistance in the field.
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy

Packaging & Delivery

Packaging: Wooden spools, iron spools, or customized packing for safe international transit.
Shipping: Sea freight, air freight, and express delivery available.
high precision stainless steel wedge wire

FAQ

Q: What is the main benefit of the “house” shape over a standard V-wire?
A: The house shape (ridge profile) provides a different slope angle and a wider base, which can offer better structural support and specific fluid dynamics for high-flow or abrasive screening applications.
A: Yes. At Jingzhou Metal, we can customize the toolings to produce specific ridge angles and base widths according to your technical drawings.
A: Absolutely. Our house-shaped wire is available with a Bright/Polished finish, ensuring it meets the hygiene and flow requirements for food and beverage processing.
A: Yes, we frequently produce this profile in SS 316L for customers requiring high corrosion resistance in marine or chemical environments.
