T-shaped Stainless Steel Profile Wire (Wedge Wire Component)

Tianjin Jingzhou Metal Products offers high-precision T-shaped Stainless Steel Profile Wire, specifically designed as the primary surface element for wedge wire screens and industrial filtration systems. Our T-shaped wire is engineered for high-accuracy solid-liquid separation and sand control, providing a stable, flat surface for demanding filtration environments.
· Dimensional Precision: Ultra-tight tolerance of +/- 0.01mm.
· Material Grade: Premium SS304, 316, and 316L for maximum corrosion resistance.
· Applications: Ideal for water well screens, mining sieves, and food & beverage processing.
· Structural Advantage: The T-shape design provides a wider surface area for precision welding and increased structural rigidity.

WhatsApp Us
Spool of bright SS316L T profile wedge wire component with a smooth metallic finish
Spool of bright SS316L T profile wedge wire component with a smooth metallic finish

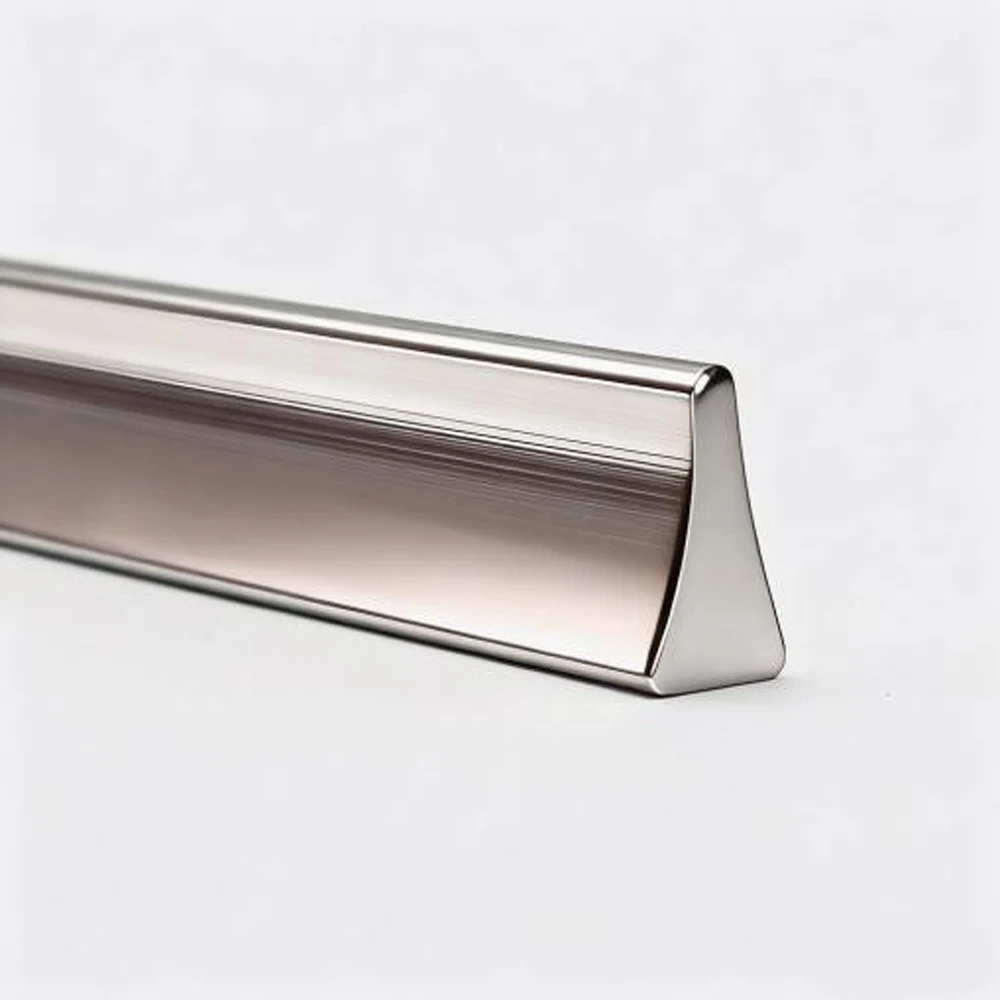

Close up of bright T shaped stainless steel profile wire wound neatly on a spool
Close up of a single trapezoidal stainless steel profile wire showing its wedge shaped cross section

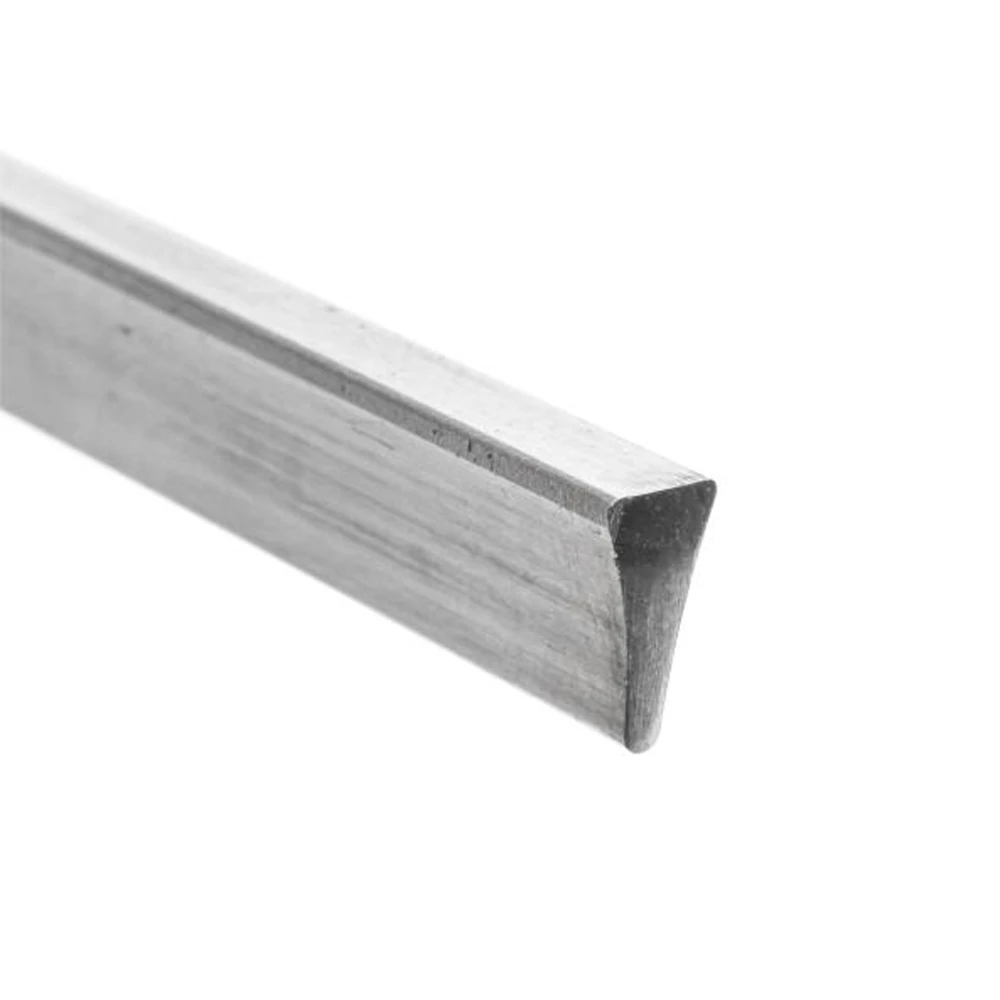

Single straight piece of T shaped stainless steel profile wire with a wide flat top and vertical stem

Product Overview

T-shaped profile wire (also known as T-shaped wedge wire) is a critical component in the manufacturing of high-end filtration equipment. Unlike standard V-shaped wires, the T-profile offers a unique cross-section that enhances the mechanical strength of the resulting screen. Through our advanced cold-drawing and precision rolling processes, we ensure the wire maintains consistent dimensions and a bright surface finish, which are essential for forming uniform slot openings in water well and industrial filters.

Product Specifications

Technical Parameter Specification Details
Material Grade Stainless Steel 304, 316, 316L
Common Dimensions 3.2x6.2mm,3.5x5.6mm
Custom Sizes Available upon technical request
Dimensions Tolerance +/- 0.01mm
Production Capacity 1,200 tons / month
Surface Finish Bright / Matte
Shape T-shaped Cross-section
Hardness/Temper As required (Soft, Hard, Spring)
Cross-section catalog of custom shaped preformed wire and wedge wire profiles

Key Advantages

Unmatched Precision: Our +/- 0.01mm tolerance ensures that the filtration slots remain perfectly uniform when these wires are welded into screens.
High Stability: The T-shaped design offers a broader “head” for the screening surface, which improves the wear resistance and longevity of the filter.
Superior Non-Clogging: Similar to wedge wire, the T-profile creates an inward-widening slot that prevents particle entrapment.
Excellent Weldability: The base of the “T” provides a consistent contact point for fusion welding onto support rods, ensuring structural integrity under high pressure.

Industrial Applications

Beer and Beverage: High-precision V-wire and T-wire components provide the ideal self-cleaning surface for lauter tun false bottoms and diatomaceous earth filters in brewing.
Mining Screen: Heavy-duty house-shaped and triangle wires offer superior wear resistance and high-impact structural stability for coal washing and ore dewatering.
Oil and Gas: Precision-engineered wedge wire profiles ensure efficient sand control and catalyst recovery in high-pressure downhole and refinery environments.
Paper and Pulp Filter: Non-clogging wedge wire cylinders and support rods facilitate high-efficiency fiber recovery and white water recycling in paper manufacturing.
Powder Screen Filter: Ultra-fine slot openings (down to 0.02mm) allow for the precise dry or wet classification of fine powders and chemical granules.
Water Treatment: Robust support rods and profile wires act as the backbone for intake screens and resin traps, ensuring long-term reliability in municipal filtration.
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)

Beer and Beverage

Mining Screen

Oil and Gas

t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)
t shaped stainless steel profile wire (wedge wire component)

Paper and Pulp Filter

Powder Screen Filter

Water Treatment

Factory Strength

16+ Years of Expertise: Dedicated to producing stainless steel wire since 2009.
Large-Scale Production: 18,000㎡ facility with three state-of-the-art plants in Tianjin, China.
High-Tech Enterprise: Recognized as a National High-Tech Enterprise with ISO 9001 certification.
Global Reach: Products exported to Europe, America, Southeast Asia, and the Middle East.
Fast Fulfillment: Orders fulfilled swiftly with standard lead times of 7-15 days.
high precision stainless steel wedge wire
high precision stainless steel wedge wire

Quality Control

· ISO 9001 Certified: Our manufacturing processes follow strict quality management protocols.
· Advanced Metrology: We utilize precision digital micrometers and optical sensors to verify the +/- 0.01mm tolerance throughout the production run.
· High-Tech Enterprise: Recognized as a National High-Tech Enterprise, focusing on precision innovation and technical excellence.
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy
astm grade 5 titanium wire (ti 6al 4v / tc4) high strength & heat resistant alloy

Packaging & Delivery

Packaging: Wooden spools, iron spools, or customized packing for safe international transit.
Shipping: Sea freight, air freight, and express delivery available.
high precision stainless steel wedge wire

FAQ

Q: Why use T-shaped wire instead of standard V-shaped wire?
A: T-shaped wire provides a larger top surface area, which can offer better durability and a flatter screening surface for specific industrial scrapers or high-abrasion mining applications.
A: Yes. We offer 316L to ensure maximum corrosion resistance in chemical processing or marine environments.
A: We maintain a dimensional tolerance of +/- 0.01mm, which is essential for ensuring uniform slot gaps in high-precision filtration.
A: Yes. While our standard sizes are 2.0×3.0mm, 3.0×4.6mm, and 3.0×5.0mm, our engineering team can customize the T-profile to your specific drawings.
