Introduction
Industrial filtration plays an important role in solid-liquid separation across many industries. The right filter basket can improve filtration accuracy, reduce maintenance frequency, and support stable operation.
A wedge wire basket is widely used because of its precise filtration performance and strong structure. However, choosing the right basket requires careful evaluation of several factors, including material, slot opening, mechanical strength, and working conditions.
Since each industry has different filtration requirements, buyers need to understand these key factors before making a decision. This guide explains how to select a suitable wedge wire screen basket for different industrial applications.
How to Choose the Right Material for a Wedge Wire Basket?
Material selection is the first step when choosing a wedge wire basket. The correct stainless steel grade can improve corrosion resistance, durability, and overall service life.
Stainless Steel Grade Selection Based on Application Requirements
Stainless steel is commonly used for wedge wire baskets because it offers excellent strength and corrosion resistance. Common material options include:
- Stainless Steel 302
- Stainless Steel 304
- Stainless Steel 304L
- Stainless Steel 316
- Stainless Steel 316L
For general filtration applications, 304 stainless steel is a popular choice. It provides reliable performance in many standard industrial environments.
For applications involving chemicals, seawater, or stronger corrosion risks, 316 and 316L stainless steel are usually preferred. These grades provide better resistance to harsh operating conditions.
The best stainless steel wedge wire material depends on the actual application. A higher-grade material is not always the best solution. Buyers should consider the filtered medium, operating environment, temperature, and expected service life before selecting the material.
How Does Filtration Accuracy Affect Wedge Wire Basket Performance?
Filtration accuracy directly affects separation efficiency and operating performance. The correct slot opening allows the basket to remove unwanted particles while maintaining the required flow rate.
Select Slot Opening According to Particle Size
The slot opening determines which particles can pass through the basket. Therefore, buyers should select the opening size according to the particle characteristics and separation requirements.
A wedge wire basket can be manufactured with different slot openings to meet various filtration needs. In many applications, slot sizes range from fine filtration levels of around 100–500 μm to larger openings for coarse separation.
A smaller slot opening improves particle retention. However, an extremely small opening may reduce flow capacity and increase the risk of blockage. The ideal choice depends on particle size, material properties, and production requirements.

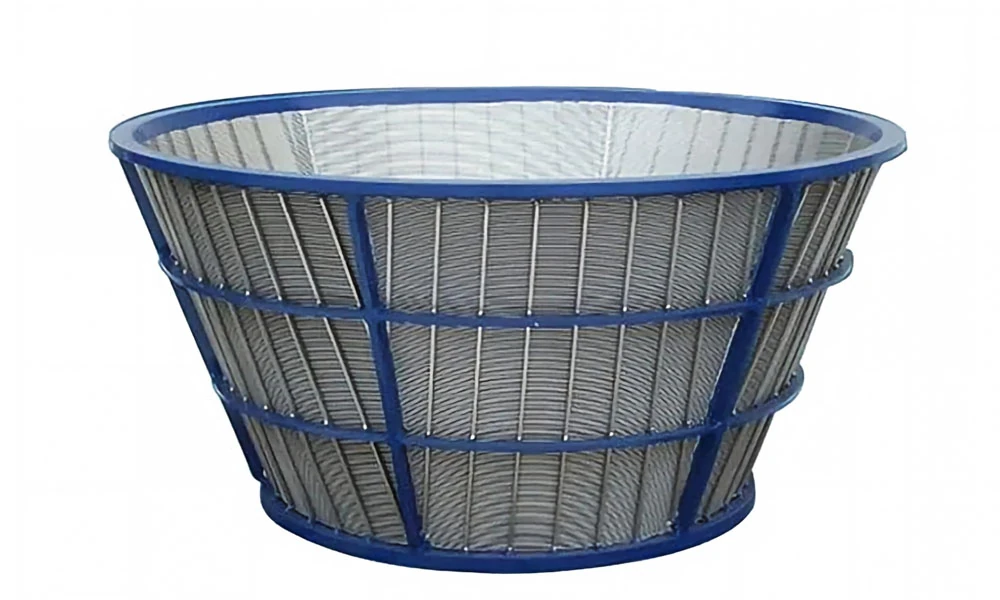

What Industries Use Customized Wedge Wire Screen Baskets?
A wedge wire screen basket is widely used in industries that require efficient solid-liquid separation and accurate particle control. Different applications require different levels of strength, wear resistance, and filtration precision.
Coal Washing and Mining Industry
In coal washing and mining operations, wedge wire baskets are mainly used for dewatering and solid separation. Because these processes often involve abrasive materials, the basket must provide strong wear resistance and reliable mechanical strength.
Water Treatment and Environmental Protection
Wedge wire baskets are also widely used in water treatment applications, including sludge processing and wastewater filtration.
Their smooth surface helps reduce material buildup. As a result, cleaning becomes easier and maintenance requirements can be reduced.
New Energy Material Processing
With the growth of new energy industries, filtration accuracy has become increasingly important. Wedge wire baskets are used in applications such as lithium battery slurry screening and photovoltaic silicon material purification, where stable separation performance is required.
How to Choose a Reliable Stainless Steel Wire Manufacturer?
Selecting the right manufacturer is as important as choosing the correct wedge wire basket. A reliable supplier should provide consistent quality, customization capability, and professional technical support.
Check Quality Control and Manufacturing Capability
A qualified stainless steel wire manufacturer should have strict quality control throughout the production process. Buyers should check important factors such as raw material inspection, dimensional accuracy, production consistency, and testing capability.
These factors help ensure that the stainless steel wire meets application requirements and delivers stable filtration performance.
Evaluate Customization and Technical Support
Industrial filtration projects often require customized solutions. A professional manufacturer should be able to adjust product design according to equipment specifications and operating conditions.
Important services include custom sizes, sample evaluation, drawing confirmation, and technical consultation. These services help customers choose the most suitable wedge wire solution for their projects.
When selecting a stainless steel wire manufacturer, buyers should consider more than product price. Manufacturing experience, quality management, and engineering support are important factors that affect long-term product performance.
Why Choose Jingzhou Metal for Stainless Steel Wedge Wire Baskets?
Jingzhou Metal provides customized stainless steel wedge wire solutions for various industrial filtration applications. With flexible material choices, precise slot control, and multiple product specifications, the baskets can meet different separation requirements.
| Item | Specification |
| Material Options | Stainless Steel 302, 304, 304L, 316, 316L, or customized materials |
| Filtration Accuracy | 15–800 μm |
| Minimum Slot Opening | Down to 0.02 mm |
| Outer Diameter Range | 25.4–1200 mm |
| Slot Opening Range | 0.1–45 mm |
| Wedge Wire Profiles | 2.0 mm × 3.0 mm, 3.0 mm × 4.6 mm, 3.0 mm × 5.0 mm |
| Support Rod Options | 3.8 mm/22, 3.8 mm/32, 3.8 mm/48, 3.8 mm/50 |
| Height Range | 6–40 mm |
| Maximum Differential Pressure | Up to 6 kg/cm² |
| Slot Tolerance | Precision tolerance up to ±0.01 mm |
| Open Area | Up to 60% |
With these flexible specifications, Jingzhou Metal can supply wedge wire baskets for demanding applications that require high accuracy, strong structure, and long service life.
Quality Certification and Technical Recognition
Quality control is essential when choosing a stainless steel wedge wire supplier. Certifications and third-party inspections can help verify manufacturing capability and product reliability.
Jingzhou Metal has obtained several certifications and supports independent inspection services, including:
- ISO 9001 Quality Management System Certification
- National High-Tech Enterprise Certificate
- SGS Inspection Certification
- BV Inspection Certification
These certifications demonstrate the company’s commitment to quality management and provide additional confidence for industrial buyers.
Technical Innovation and Patent Capability
Advanced manufacturing technology helps improve product precision and consistency. Jingzhou Metal applies patented technologies in key production processes, including wire forming, surface treatment, and precision rolling.
Special-Shaped Wire Drawing Device
This technology is used during the drawing process of wedge wire and profile wire. Its adjustable design helps improve wire accuracy and maintain consistent shapes.
Surface Lubrication Device for Stainless Steel Wire Production
This technology is applied before wire drawing. It improves surface quality, reduces processing friction, and helps extend mold service life.
Continuous Profile Wire Rolling Machine
This equipment supports continuous rolling of shaped wires. The adjustable structure helps improve forming accuracy and maintain stable production quality.
These technologies strengthen control over wire precision, surface quality, and production consistency, which supports the manufacturing of high-performance wedge wire baskets.
FAQ
Q1. What filtration accuracy can a wedge wire basket achieve?
A high-precision wedge wire basket can achieve filtration accuracy from 15–800 μm. The minimum slot opening can reach 0.02 mm, while slot tolerance can be controlled within ±0.01 mm.
Slot dimensions can also be measured with a 2D measuring projector to ensure product accuracy.
Q2. How should a wedge wire screen basket be cleaned and maintained?
Common cleaning methods include high-pressure water washing, ultrasonic cleaning, and soft mechanical brushing.
Regular backwashing can help remove accumulated particles during operation. For heavy contamination, deeper cleaning methods may be required. However, hard abrasive tools should be avoided because they may damage the wedge wire surface.
Q3. How much pressure can a wedge wire screen basket withstand?
Jingzhou Metal wedge wire screen basket products can withstand differential pressure up to 6 kg/cm².
The actual pressure capacity depends on factors such as basket size, support structure, material grade, and specific operating conditions.
Q4. Can old samples be reproduced into new wedge wire baskets?
Yes. Engineers can analyze old samples and reproduce the required specifications.
Customers should provide key application details, including filtered material, particle size, temperature, pressure, and flow rate. Before production, technical drawings can be confirmed to ensure the new basket meets the application requirements.
Conclusion
Choosing the right wedge wire basket requires careful consideration of more than product specifications and price. Buyers should evaluate material selection, slot opening, basket structure, application conditions, and manufacturer capability.
A reliable supplier should understand different filtration challenges and provide solutions based on actual operating requirements. Strong manufacturing experience, strict quality control, and professional technical support can help improve filtration performance and extend product service life.
Jingzhou Metal provides customized stainless steel wedge wire solutions for industries such as coal washing, mining, water treatment, and new energy material processing. With advanced production technology and flexible customization options, the company helps customers select suitable filtration products for different applications.
If you need a reliable stainless steel wire manufacturer or customized wedge wire screen basket, contact Jingzhou Metal for professional support and filtration solutions.
